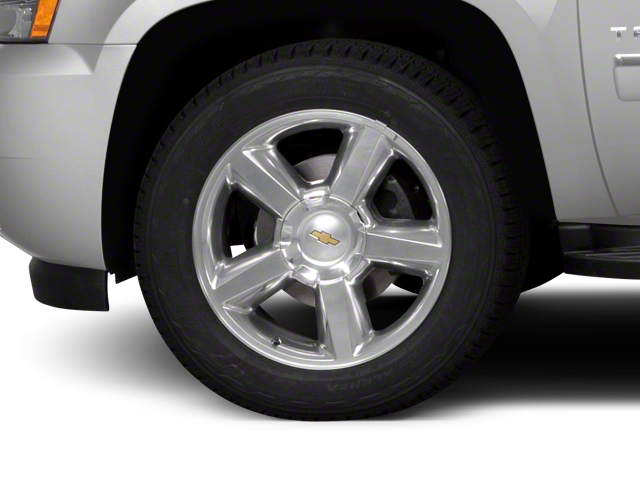

• Wheels, 4 - 20" x 8.5" (50.8 cm x 21.6 cm) polished aluminum
• Tires, P275/55R20 all-season, blackwall
• Recovery hooks, chrome (Deletes (V76) recovery hooks on 4WD models.) (Requires 4WD models.)
• Wheel, 17" (43.2 cm) full-size, steel spare
• Tire carrier, lockable outside spare winch-type mounted under frame at rear
• Tire, spare P265/70R17 all-season blackwall
• Luggage rack side rails, roof-mounted, Black
• Luggage rack center rails, roof-mounted, Black

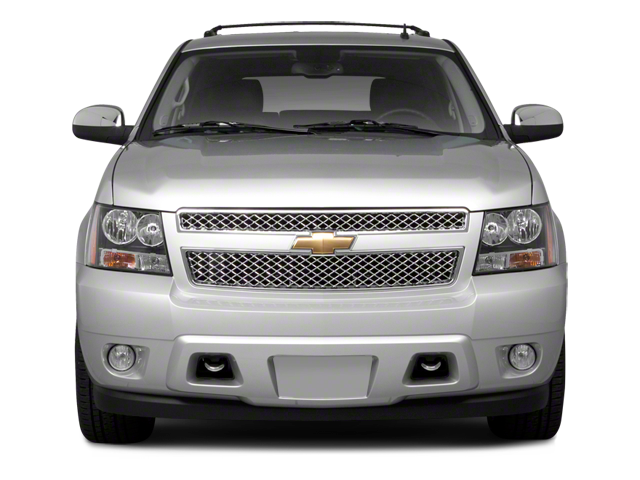

• Grille insert, bright chrome
• Fascia, front color-keyed
• Fascia, rear color-keyed with chrome strip and integrated trailer hitch cover
• Moldings, color-keyed bodyside (Unique design with chrome strip included on LTZ.)
• Assist steps, Black
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Fog lamps, front, halogen (Included and only available with (PDA) Texas Edition and (PEB) Regional Value Package.)
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators, ground illumination and curb-tilt (Mirror caps are bright chrome. Includes memory function with (AN3) front bucket seats.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wiper, rear intermittent with washer
• Door handles, bright chrome

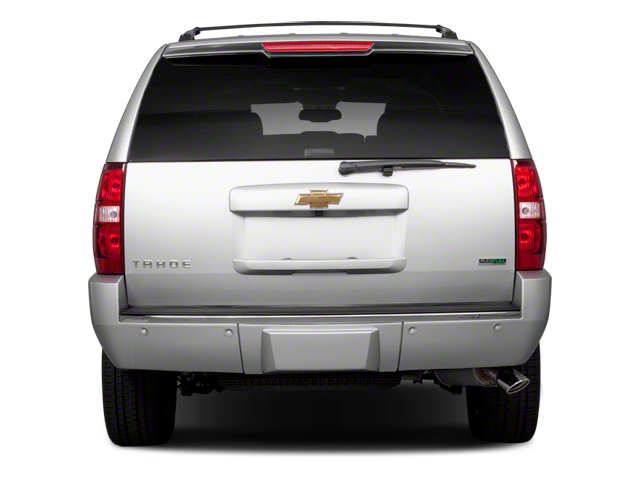

• Liftgate with liftglass rear door system with rear-window wiper/washer
• Liftgate, rear power-operated

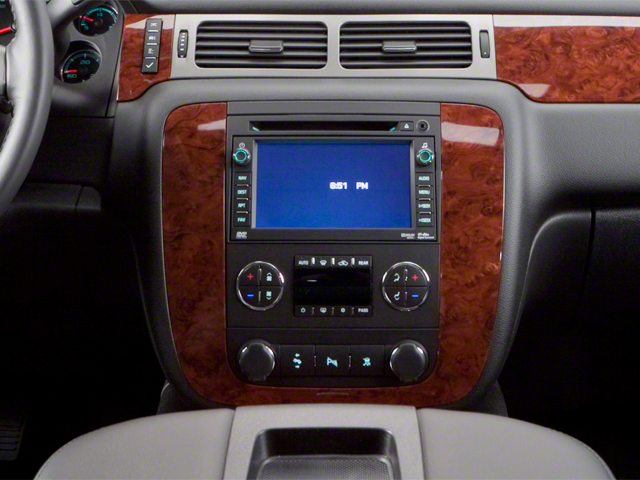

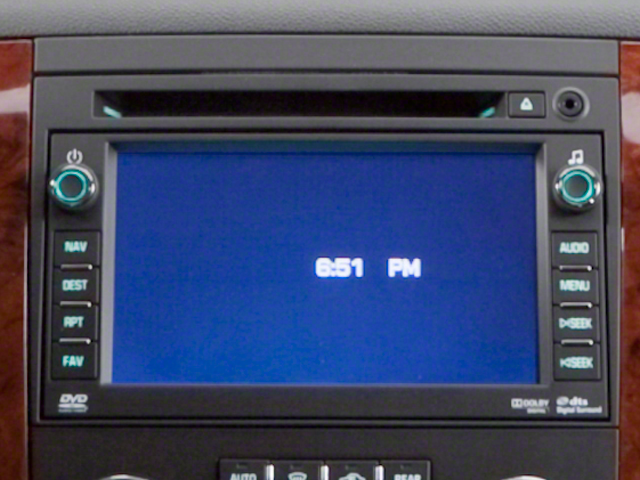

• Audio system with Navigation, AM/FM stereo with MP3 compatible CD player and navigation, auxiliary jack input, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume, TheftLock, USB Port, and voice recognition (Not available with (PCJ) Sun, Entertainment and Destinations Package.)
• Audio system feature, Bose Centerpoint Surround Sound 10-speaker system
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media)
• Audio system feature, USB port
• XM Radio is standard on nearly all 2011 GM models and includes 3 months of trial service. Get over 170 channels, including: commercial-free music, sports, news, talk, entertainment, comedy, family and kids' channels, and much more. With XM's incredible range of programming, everything worth listening to is on XM (Requires a subscription sold separately by XM after the first 90 days. Available only in the 48 contiguous United States and District of Columbia. Visit gm.xmradio.com for details.)
• XM NavTraffic is available in over 80 markets and works with your vehicle's navigation system to give you real-time traffic data right when you need it most - while you're driving. You'll avoid traffic tie-ups, save time and gas by getting alternate routes, and, in some cases, receive traffic speed and drive time information. Plus, you can use XM NavTraffic at the same time you're enjoying XM Radio. You'll find that once you start using XM NavTraffic, you won't want to drive without it (Requires a subscription sold separately by XM after trial period. Available only in select markets. For more information, see xmradio.com/navtraffic.)
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface) with specific steering wheel controls

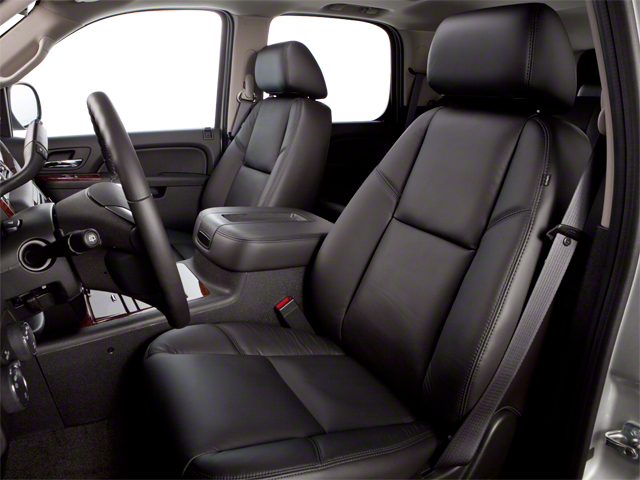

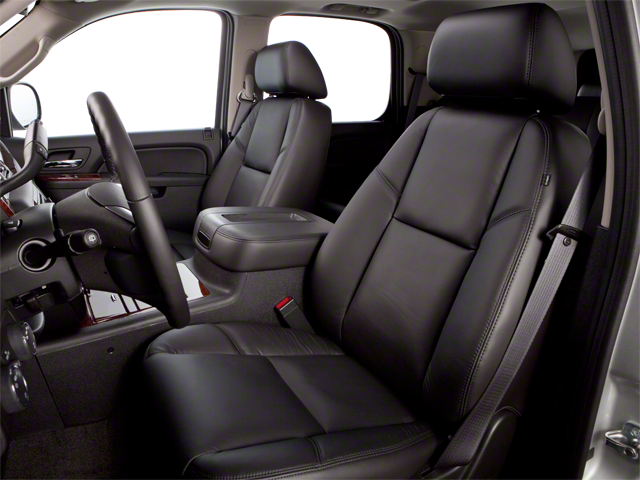

• Seats, front bucket with Perforated leather-appointed seating (AG1) 12-way power driver and (AG2) front passenger seat adjusters, power lumbar control, heated and cooled seats, 2-position driver memory (including lumbar), adjustable head restraints, storage pockets and floor console

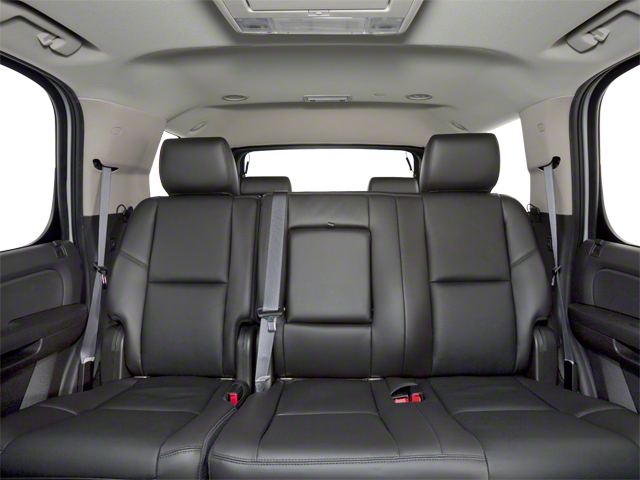

• Seats, second row bucket with leather-appointed seating, reclining
• Seats, heated and cooled driver and front passenger
• Seats, heated second row
• Seat adjuster, driver 6-way power
• Seat adjuster, front passenger 6-way power
• Seat release, second row, power release only
• Seats, third row 50/50 split-bench, 3-passenger removable, all-belts-to-seat
• Console, floor with storage area, cup holders and integrated second row audio controls (Includes woodgrain covered forward storage.)
• Headliner, cloth
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row, removable

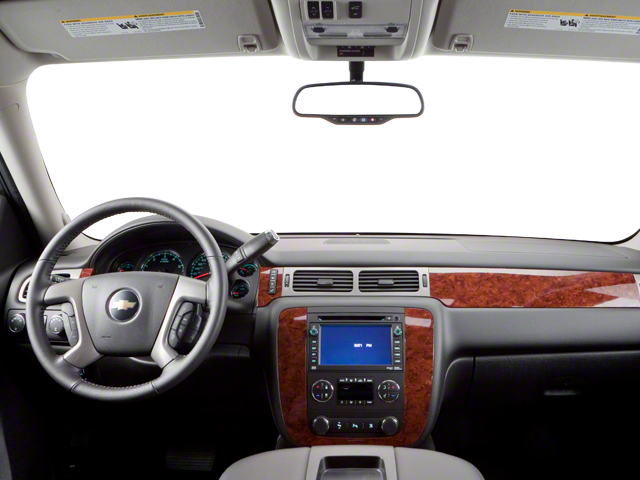

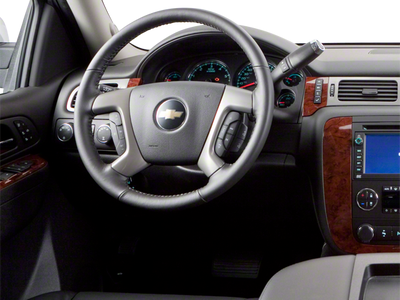

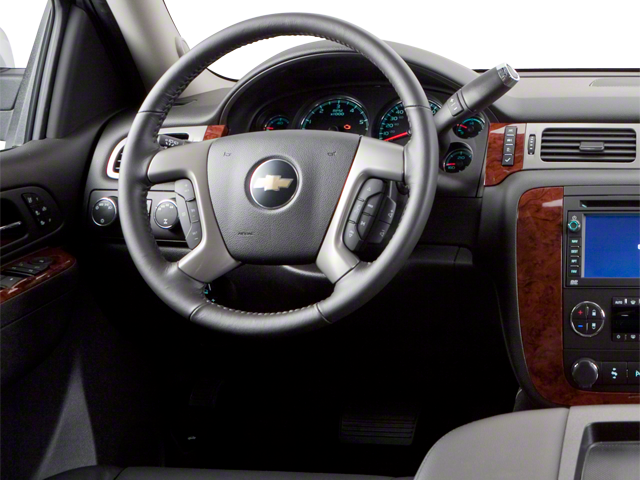

• Steering wheel, leather-wrapped
• Steering wheel controls, mounted audio and cruise controls
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on

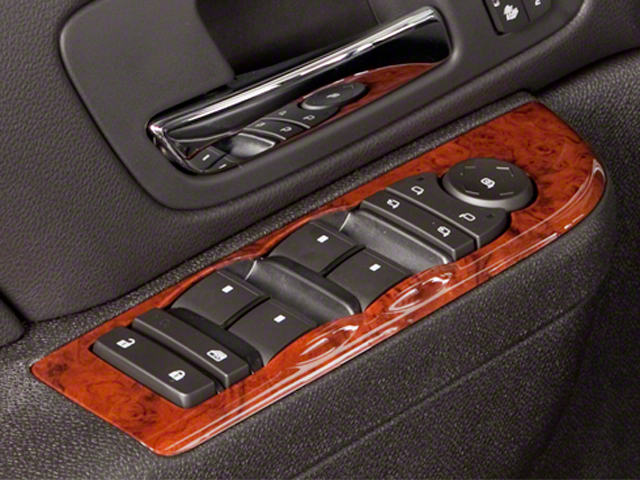

• Windows, power with driver Express-Down and lockout features
• Pedals, power-adjustable for accelerator and brake (Includes memory function with (AN3) front bucket seats.)
• Door locks, power programmable with lockout protection
• Remote vehicle starter system includes Remote Keyless Entry
• Cruise control, electronic with set and resume speed
• Universal Home Remote includes garage door opener, programmable
• Theft-deterrent system, vehicle, PASS-Key III
• Heater, rear auxiliary with rear passenger heating ducts
• Air conditioning, tri-zone automatic climate control with individual climate settings for driver and right front passenger
• Air conditioning, rear auxiliary
• Defogger, rear-window electric
• Power outlets, 5 auxiliary, 12-volt includes 2 on the instrument panel, 1 in the cargo area, 1 inside the center console and 1 at the back of the console
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod
• Assist handles, front passenger and second row outboard
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions

• StabiliTrak, stability control system with traction control
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor, includes third row seating positions with (AS3) passenger third row bench seat (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat outboard occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance including Stolen Vehicle Slowdown and Remote Ignition Block, Remote Door Unlock, Turn-by- Turn Navigation with Destination Download (requires navigation radio) and OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling. (Visit onstar.com for details and system limitations.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• Rear Parking Assist, Ultrasonic with audible warning
• Rearview camera system
• LATCH system (Lower Anchors and Top tethers for CHildren) for child safety seats
• Tire Pressure Monitoring System air pressure sensors in each tire with pressure display in Driver Information Center (does not apply to spare tire)

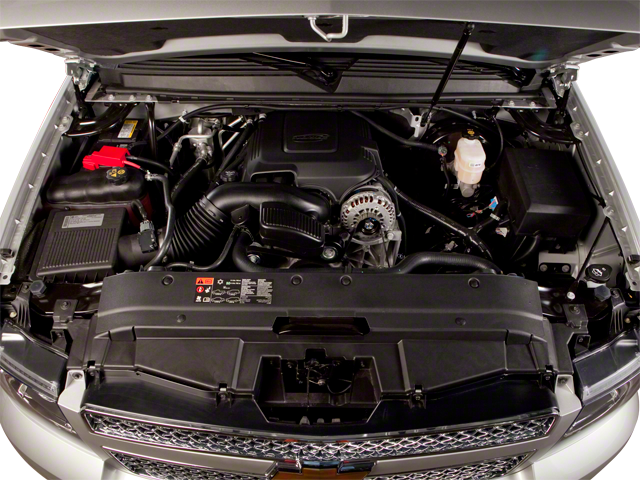

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL

• with Active Fuel Management
• capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [238.6 kW] @ 5400 rpm
• 335 lb-ft of torque [452.2 N-m] @ 4000 rpm
• with E85 ethanol - 326 hp [243.1 kW] @ 5300 rpm
• 348 lb-ft of torque [469.8 N-m] @ 4400 rpm)
• iron block (STD)

• Preferred Equipment Group 1LZ
• Heavy-Duty Rear Locking Differential
• 20" x 8.5" Polished Aluminum Wheels
• 20" x 8.5" Chrome Wheels
• Front Power Reclining Bucket Seats
• Custom Perforated Leather-Appointed Seat Trim
• 6-Way Power Front Passenger Seat Adjuster
• 2nd Row Reclining Bucket Seats
• AM/FM Stereo w/MP3 Compatible CD/Navigation
• Power Adjustable Pedals For Accelerator & Brake
• Remote Vehicle Starter System
• Power Tilt-Sliding Sunroof
• Front Halogen Fog Lamps
• Front License Plate Bracket
• Ultrasonic Rear Parking Assist
• Chrome Recovery Hooks
• Autoride Suspension Package
• Integrated Trailer Brake Controller
• Heavy-Duty Trailering Package
• 12-Way Power Driver Seat Adjuster
• 2nd Row Power Seat Release
• Automatic Tri-Zone Air Conditioning
• Floor Console
• Auto-Dimming Inside Rear-View Mirror
• Power Folding & Adjustable Heated Outside Mirrors
• Rear Power-Operated Liftgate
• Rear Color-Keyed Fascia w/Chrome Strip
• Auto Air Level Control
• Bright Chrome Door Handles
• Heated 2nd Row Seats
• Heated & Cooled Driver & Front Passenger Seats
• Heavy-Duty Air-to-Oil External Engine Oil Cooler
• Heavy-Duty Air-to-Oil Auxiliary Transmission Oil Cooler
• XM NavTraffic
• Universal Home Remote
• Bose Centerpoint 10-Spkr Audio System Feature
• USB Port Audio System Feature
• Rear-View Camera System
• Bright Chrome Grille Insert
• 4-Wheel Disc Brakes
• Emergency communication system: OnStar Directions & Connections
• Exterior Parking Camera Rear
• Compass
• 10 Speakers
• Auto-dimming Rear-View mirror
• Front beverage holders
• Ventilated front seats
• Variably intermittent wipers
• Turn signal indicator mirrors
• Trip computer
• Traction control
• Tilt steering wheel
• Steering wheel mounted audio controls
• Split folding rear seat
• Speed control
• Security system
• Remote keyless entry
• Rear window wiper
• Rear window defroster
• Rear reading lights
• Rear audio controls
• Rear anti-roll bar
• Rear air conditioning
• Radio data system
• Power windows
• Power steering
• Power passenger seat
• Power driver seat
• Power door mirrors
• Pedal memory
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Memory seat
• Low tire pressure warning
• Illuminated entry
• Heated rear seats
• Heated front seats
• Heated door mirrors
• Garage door transmitter
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front fog lights
• Front dual zone A/C
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Bumpers: body-color
• Bodyside moldings
• Automatic temperature control
• Auto-leveling suspension
• Auto-dimming door mirrors
• Alloy wheels
• Adjustable pedals
• AM/FM radio
• ABS brakes
• 3rd row seats: split-bench
• Voltmeter
• Tachometer
• Spoiler
• Roof rack
• Power Liftgate
• Navigation System
• Front Center Armrest
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 3088
• Curb Weight - Rear (lbs): 2806
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 780
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 5-Link
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4100
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 46
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.8
• Tires
• Front Tire Order Code: QSS
• Rear Tire Order Code: QSS
• Spare Tire Order Code: ZVL
• Front Tire Size: P275/55R20
• Rear Tire Size: P275/55R20
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2104
• Rear Tire Capacity (lbs): 2104
• Spare Tire Capacity (lbs): 2135
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 20 x 8.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Chrome
• Rear Wheel Material: Chrome
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.8
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 116.0
• Length, Overall w/rear bumper (in): 202.0
• Width, Max w/o mirrors (in): 79.0
• Height, Overall (in): 76.9
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 31.6
• Ground Clearance, Front (in): 10.5
• Ground Clearance, Rear (in): 9.1
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -

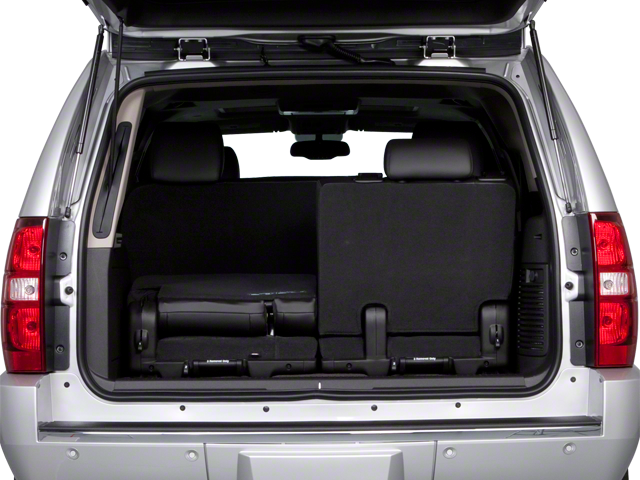

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 81.4
• Cargo Area Length @ Floor to Seat 2 (in): 49.4
• Cargo Area Length @ Floor to Seat 3 (in): 15.2
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.1
• Cargo Box (Area) Height (in): 41.7
• Cargo Volume to Seat 1 (ft³): 108.9
• Cargo Volume to Seat 2 (ft³): 60.3
• Cargo Volume to Seat 3 (ft³): 16.9
• Interior Dimensions
• Passenger Capacity: 7
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 60.3
• Second Head Room (in): 39.2
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 60.6
• Third Head Room (in): 37.9
• Third Leg Room (in): 25.6
• Third Shoulder Room (in): 61.7
• Third Hip Room (in): 49.1
• Summary

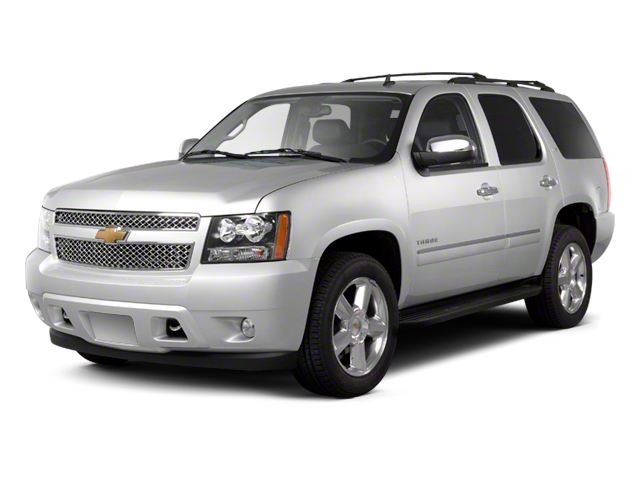

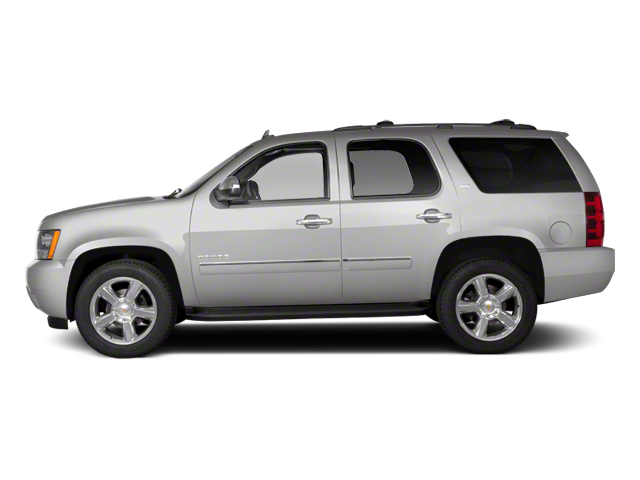

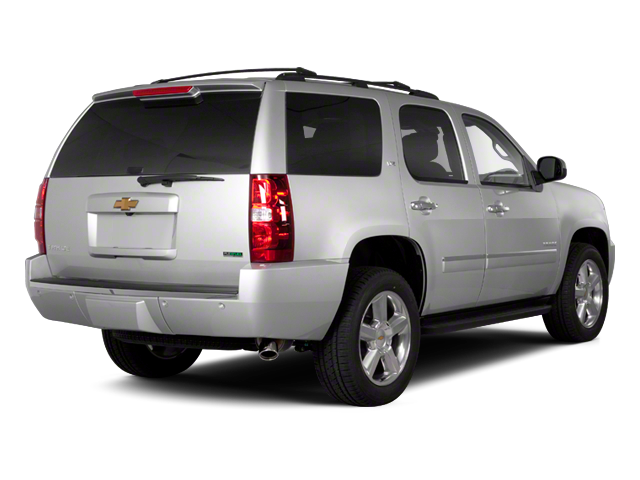

• Vehicle Name: Chevrolet Tahoe
• Body Style: 4 Door Sport Utility
• Body Code: E52
• Emissions
• EPA Greenhouse Gas Score: 2
• Tons/yr of CO2 Emissions @ 15K mi/year: 11
